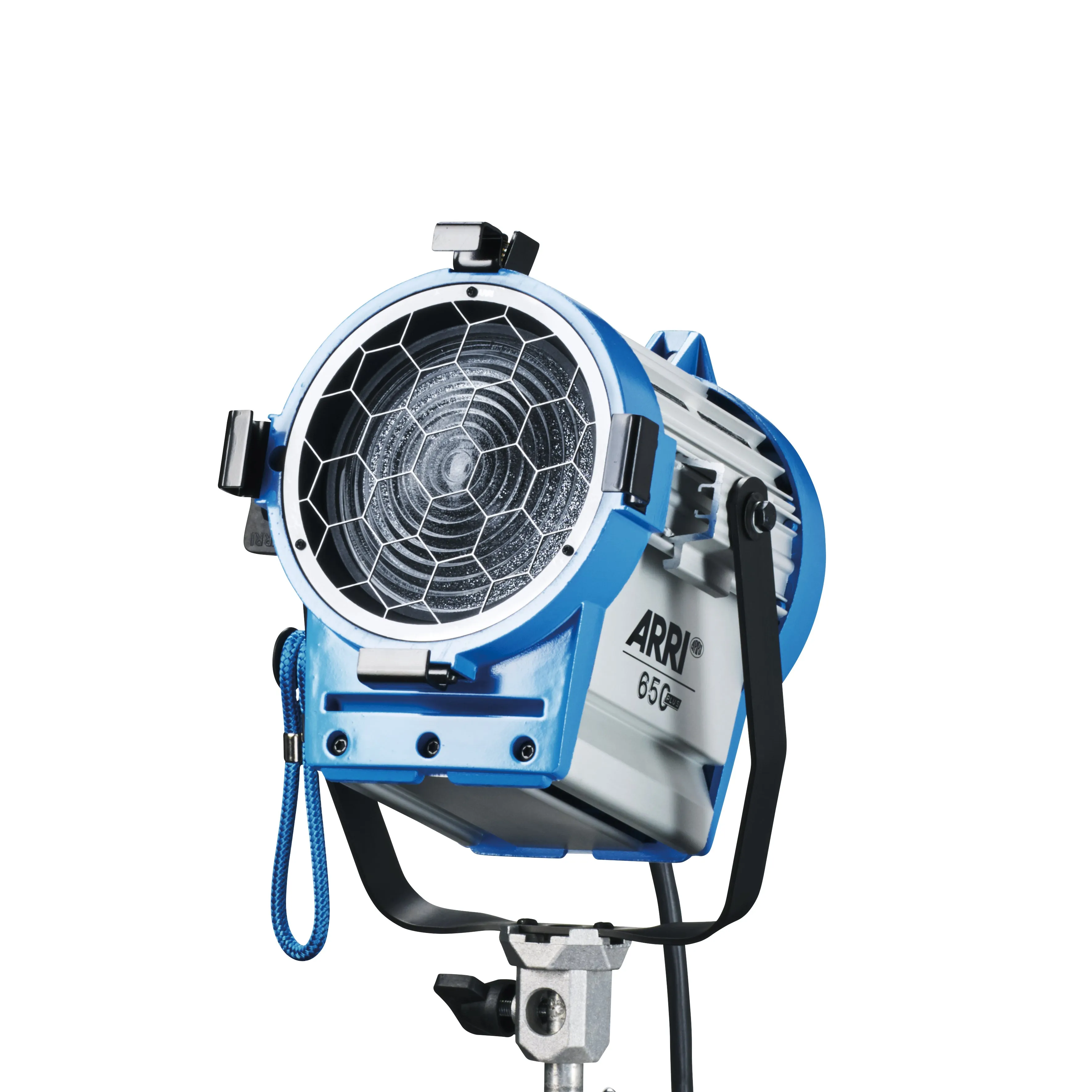

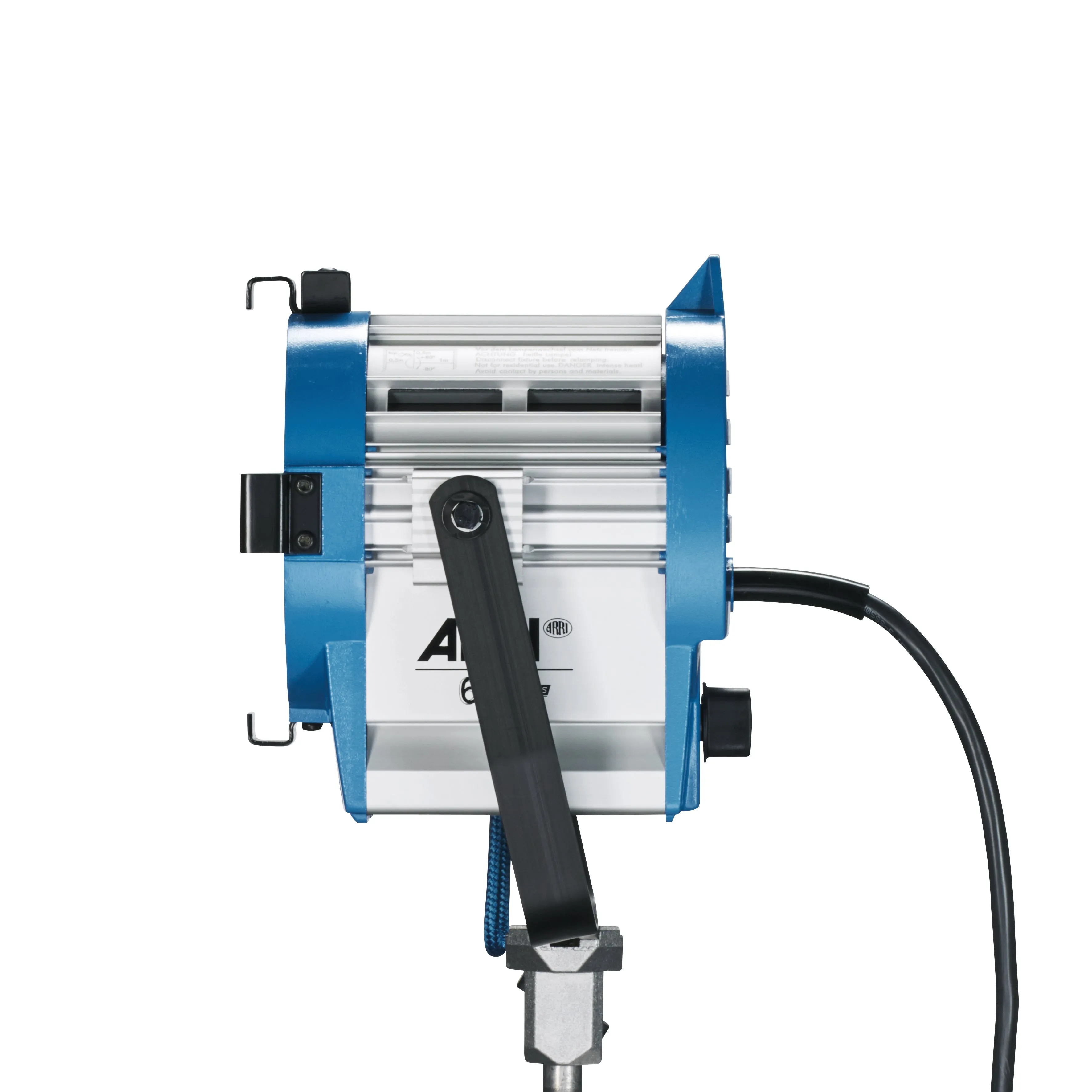

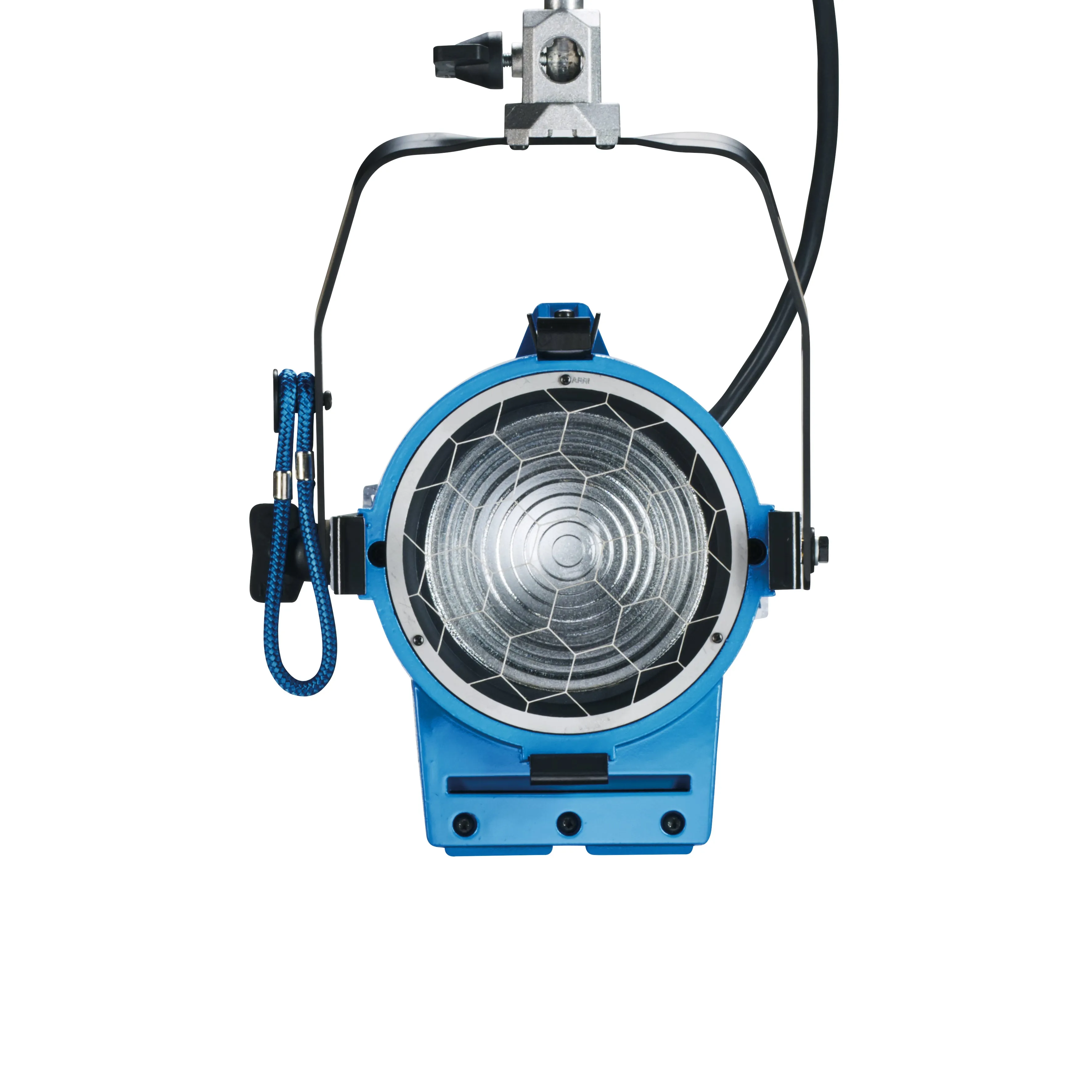

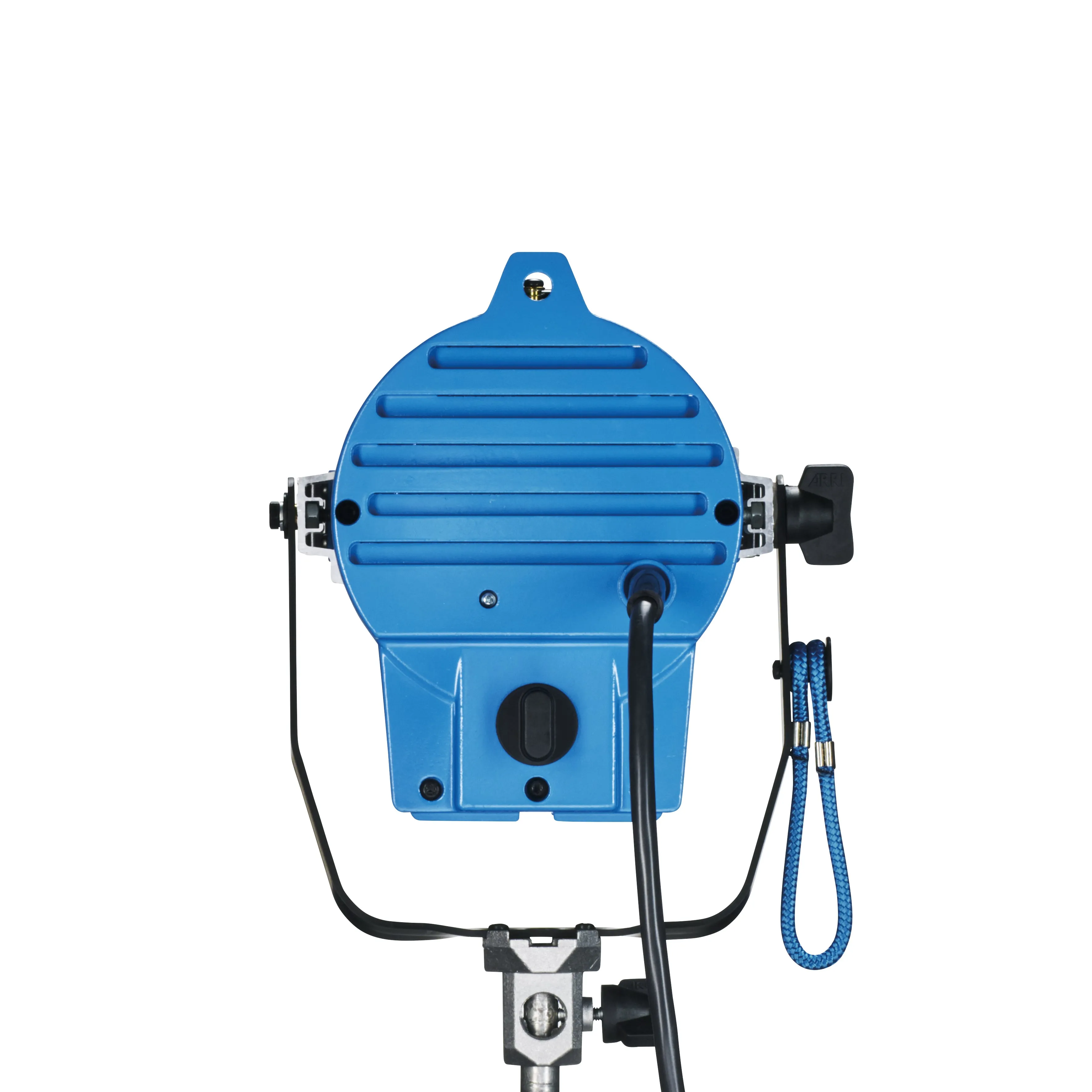

ARRI 650 Plus
The ARRI Junior series is ideal for use where compact, lightweight tungsten fresnel spotlights are required, especially in small studios where grid height is a problem. Classic ARRI construction, using corrosion-resistant, extruded, die cast aluminium, maximises body strength while maintaining the light weight of a location fixture. Despite the small size of ARRI Junior lampheads, their short focal length, wide angle lenses produce impressive light output and good light distribution over the full beam area. ARRI Junior lampheads are available in both manual and pole-operated versions.
Features
- High quality lenses and reflectors for excellent optical performance
- Compact size and lightweight
- Robust construction of rust-resistant, extruded, die cast aluminium
- Easy and convenient operation
- Quick and easy service access
- Extensive range of accessories
Technical Data
| Category | Tungsten |
| Series | ARRI Junior |
| Model | ARRI 650 Plus |
| Mains Plug | Schuko, Bare Ends |
| Lamphead Type | Fresnel, 650 W |
| Reflector | Spherical specular high purity aluminium |
| Lamp Type | CP89 FRL 650 W / 230 V; CP89 FRK 650 W / 120 V; CP82 500W; CP81 300W |
| Power Consumption | 650 W, 500 W, 300 W |
| Voltage Range | 230 V / 120 V |
| Lamp Base | GY9.5 |
| Dimming | yes, 0 to 100 % via external dimming system |
| Correlated Color Temperature | 3,200 K |
| Beam Angle | 12° to 52° |
| Weight in kg net* | approx. 3 kg |
| Weight in kg packed* | approx. 4 kg |
| Measurements (HxWxL) incl. Pin in mm* | 300 x 220 x 190 mm |
| Measurements (HxWxL) excl. Pin in mm* | 256 x 220 x 190 mm |
| Measurements (HxWxL) Packed size in mm* | 295 x 220 x 255 mm |
| Lens / UV-Protection Glass Diameter in mm | 112 mm |
| Accessory Diameter in mm | 168 mm |
| Barndoor in mm | 168 mm |
| Mounting | Socket 16 mm / 5/8" (0.6") |
| Housing Color | Blue/Silver, Black |
| Protection Class / IP Rating | I / IP20 |
| Certifications | CE, CB, GS, cNRTLus |
