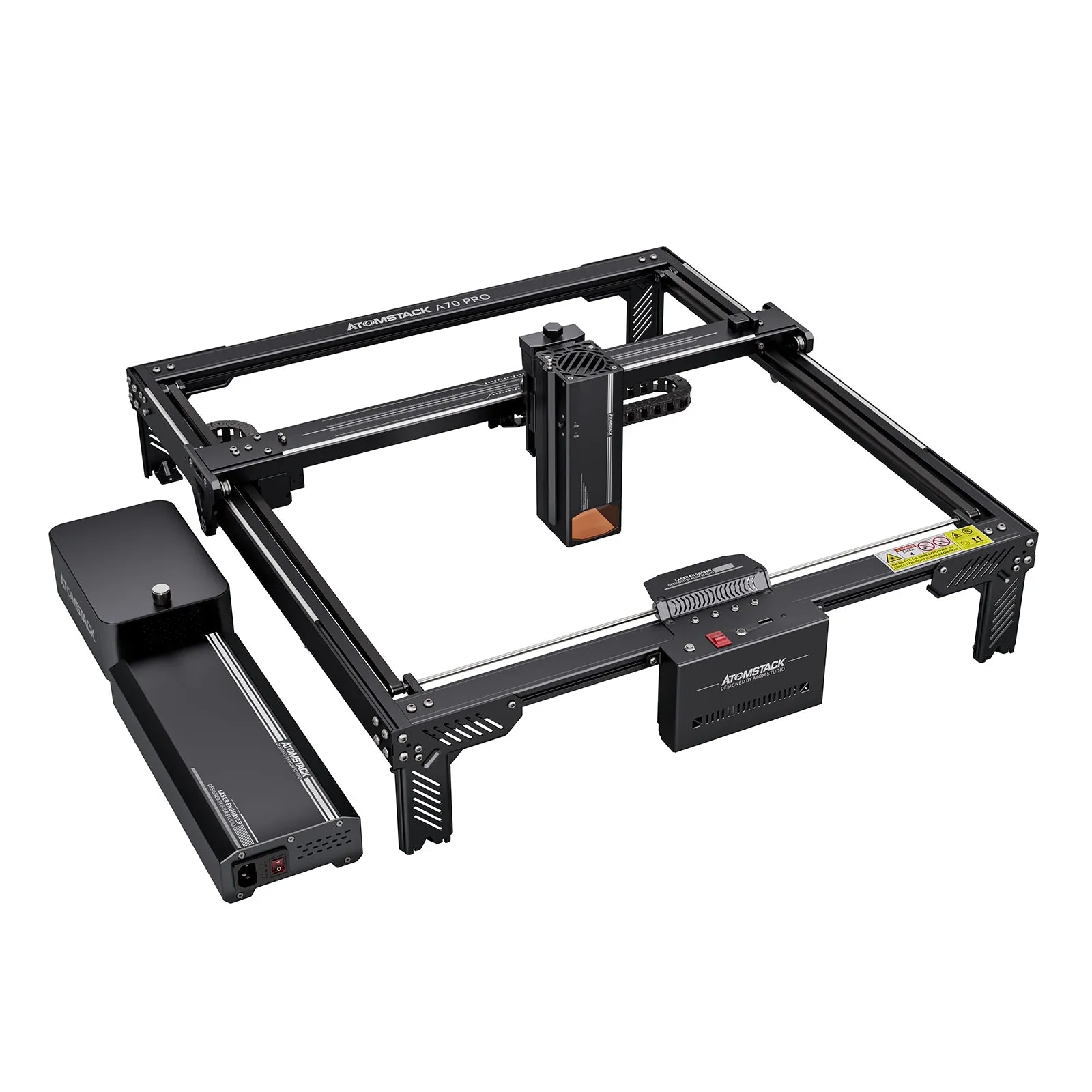

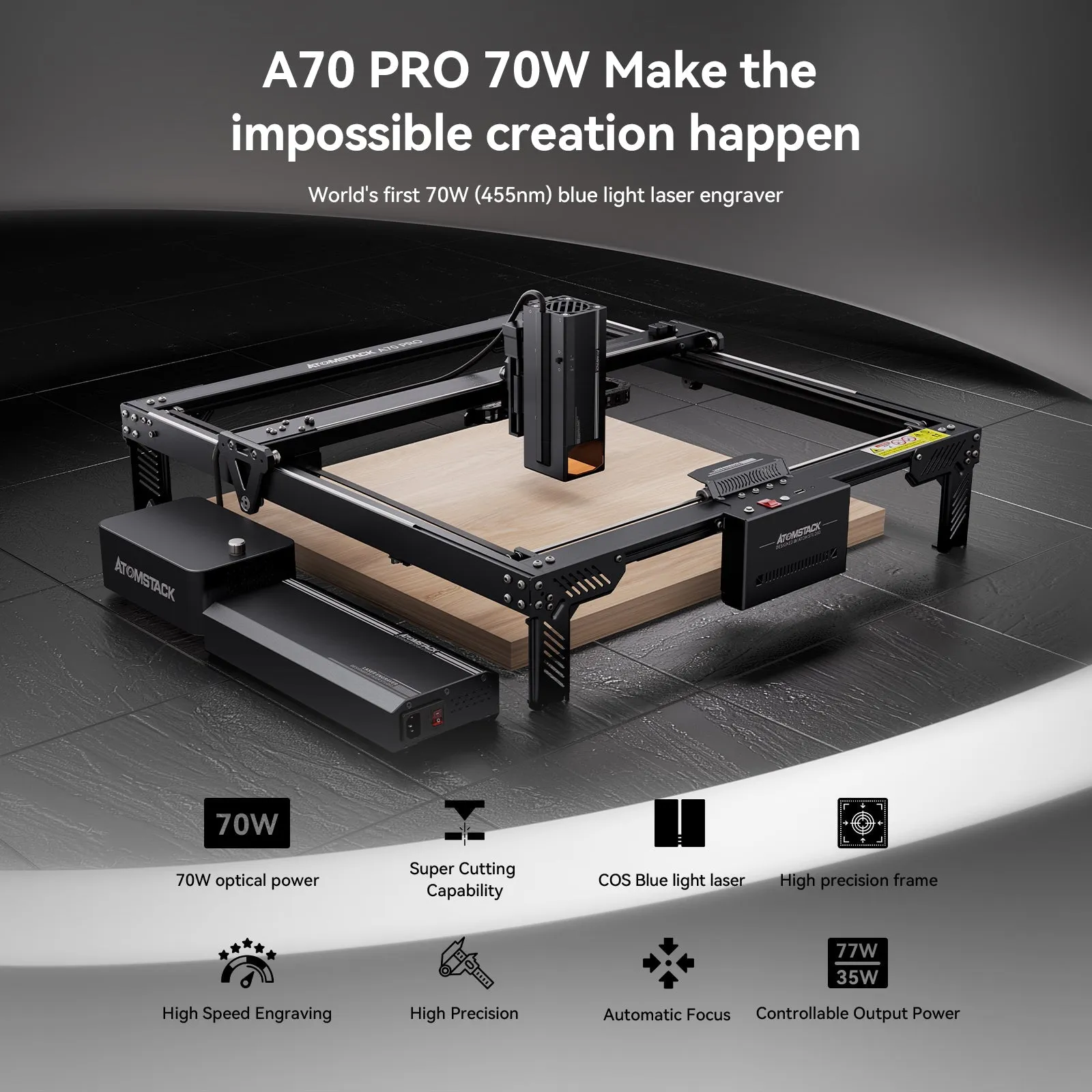

Name: Atomstack A70 Pro X70 PRO 360W Laser Engraving Machine With F60 Air Assist Dual-Mode 70W/35W Output Autofoucs Engraver Cutter 500*400mm
SKU: 793822

Product Details ＋

About ATOMSTACK :
100% laser engraving machine manufacturer located in China, welcome to visit our factory whenever you like! It is important to know that our factory do not just sell "boxes", but we offer support and advice to get the best results with the laser engraver you choose. We are always available to provide the spare parts you need with your laser engraving machine .You could reply on us for the consistent quality and service!

About Tax:
we do not including any tax and duty!
About customs charging fee . nobody can control , every country customs has different Import and export tariff system.

About Maintenance:
All machines have 13 months warranty against manufacturing defects,buy it with confidence. If any breakdown, send us the working video, we shall offer solutions for you. If the item was damaged during transportation or cannot be used normally, pls do not hesitate to contact us and provide us the photos and working video, we will give a partial refund or send the spare parts for free.

Specifications:

Product Model: AtomStack A70 Pro X70 PRO
Device Size: 706*767*230mm
Engraving Size: 500*400mm
Working Principle: Engraving / Cutting
Engraving Materials: Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplated and painted metal, 304 mirror stainless steel, glass, ceramics, cotton, slate;
Cutting Materials: Thin steel plate, cardboard, non-woven fabric, wood, acrylic, more thin plastic sheets, sponge;
Input Power: 360W

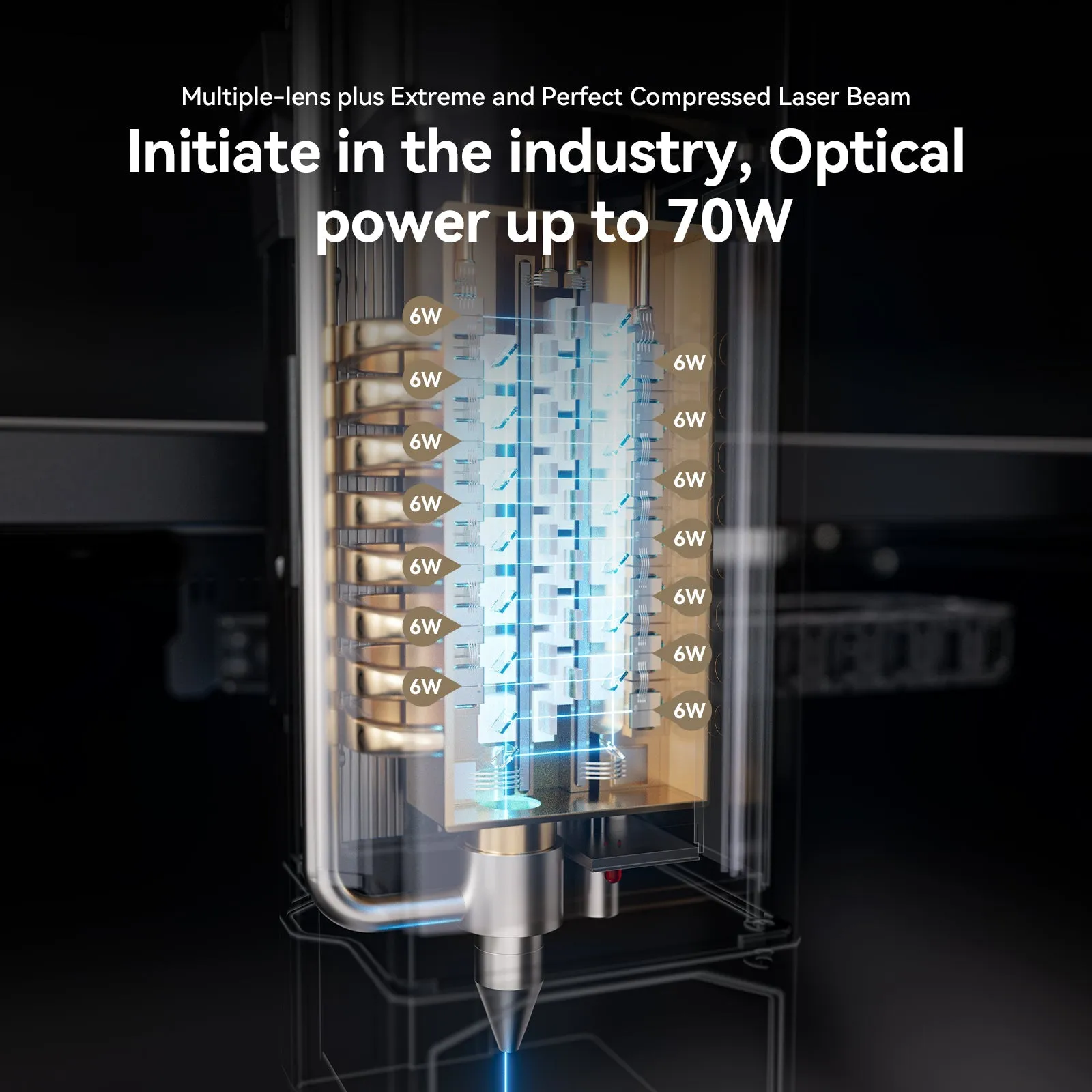

Output Power: 70-77W, 35-39W
Maximum Speed: 400mm/s (24000mm/min)
Laser Wavelength: 455±5nm
Engraving Accuracy: 0.01mm
Repetition Accuracy: 0.1mm
Spot Size: 0.12*0.18mm (70W) / 0.08mm*0.12mm (35W)
Transmission Method: USB transmission
Focus Adjustment Method: Automatic focus manual focus
Screen Control: 4.3 inches
Connection Support: Type-C, mobile WiFi, touch screen
Support Systems: IOS, Android, Windows, Mac
Operating Software: LaserGRBL, LightBurn, AtomStack Studio
Air Flow Rate: 0-60 L/min infinitely adjustable
Power Supply: Input 100-240V AC, 50/60HZ, output 12V 5A
Quality Certification: CE, FCC, RoHS, FDA, PSE

Product Description

1. Powerful cutting force: capable of cutting 25mm acrylic, 12mm MDF density board, 30mm pine board, 0.3mm stainless steel sheet

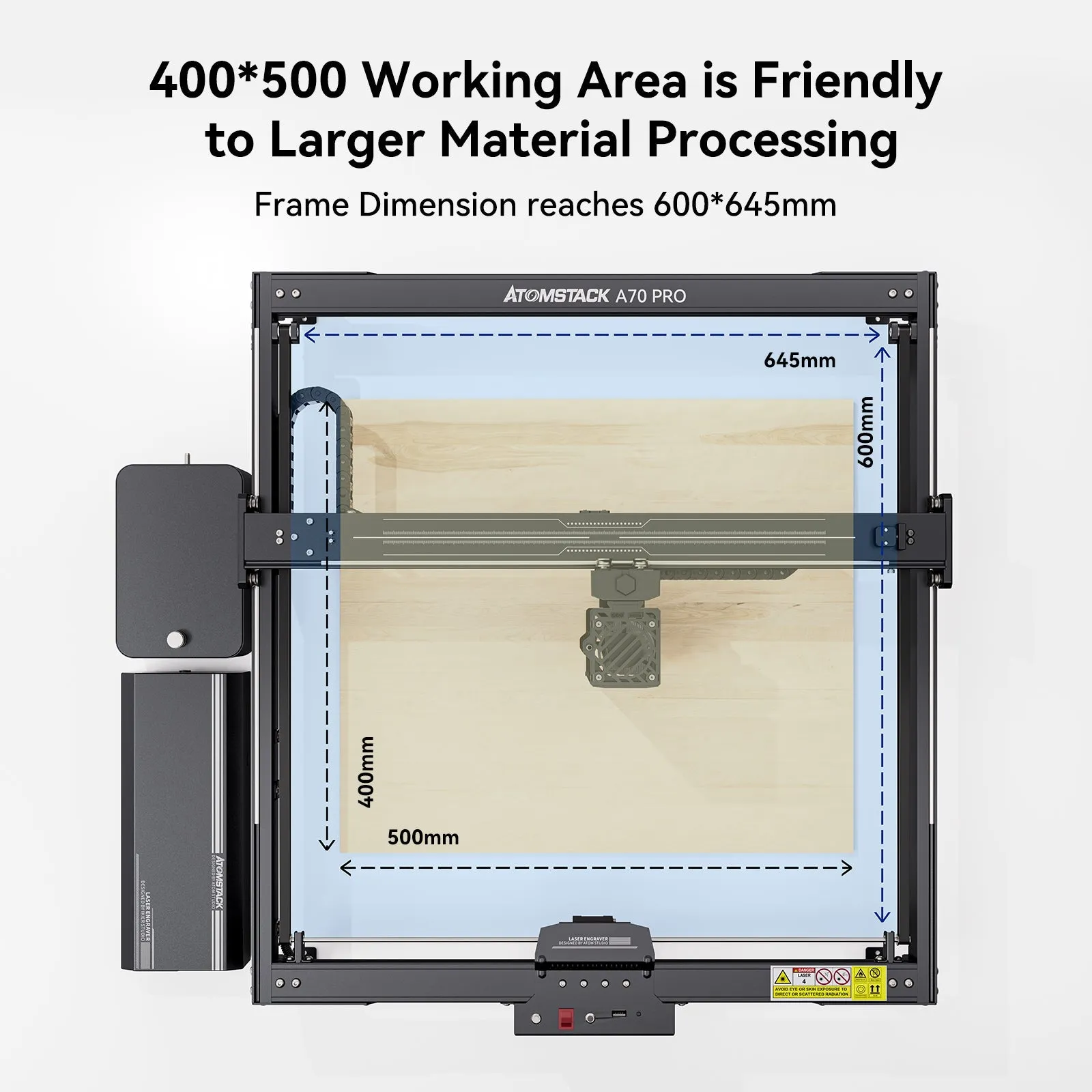

2. Enlarged processing area: as a professional processing tool, standard 500*400mm large working area, frame can accommodate materials up to 600*645mm in size

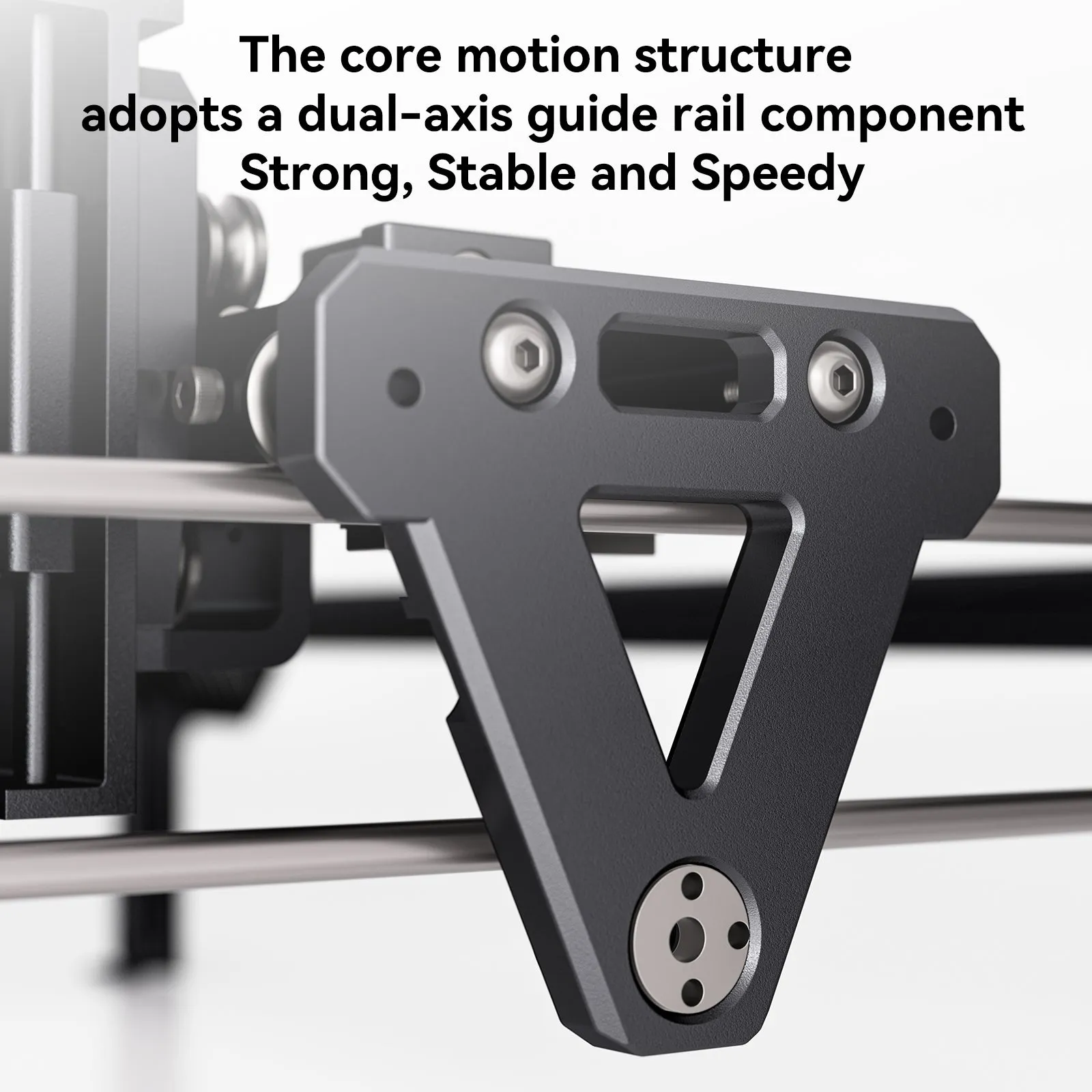

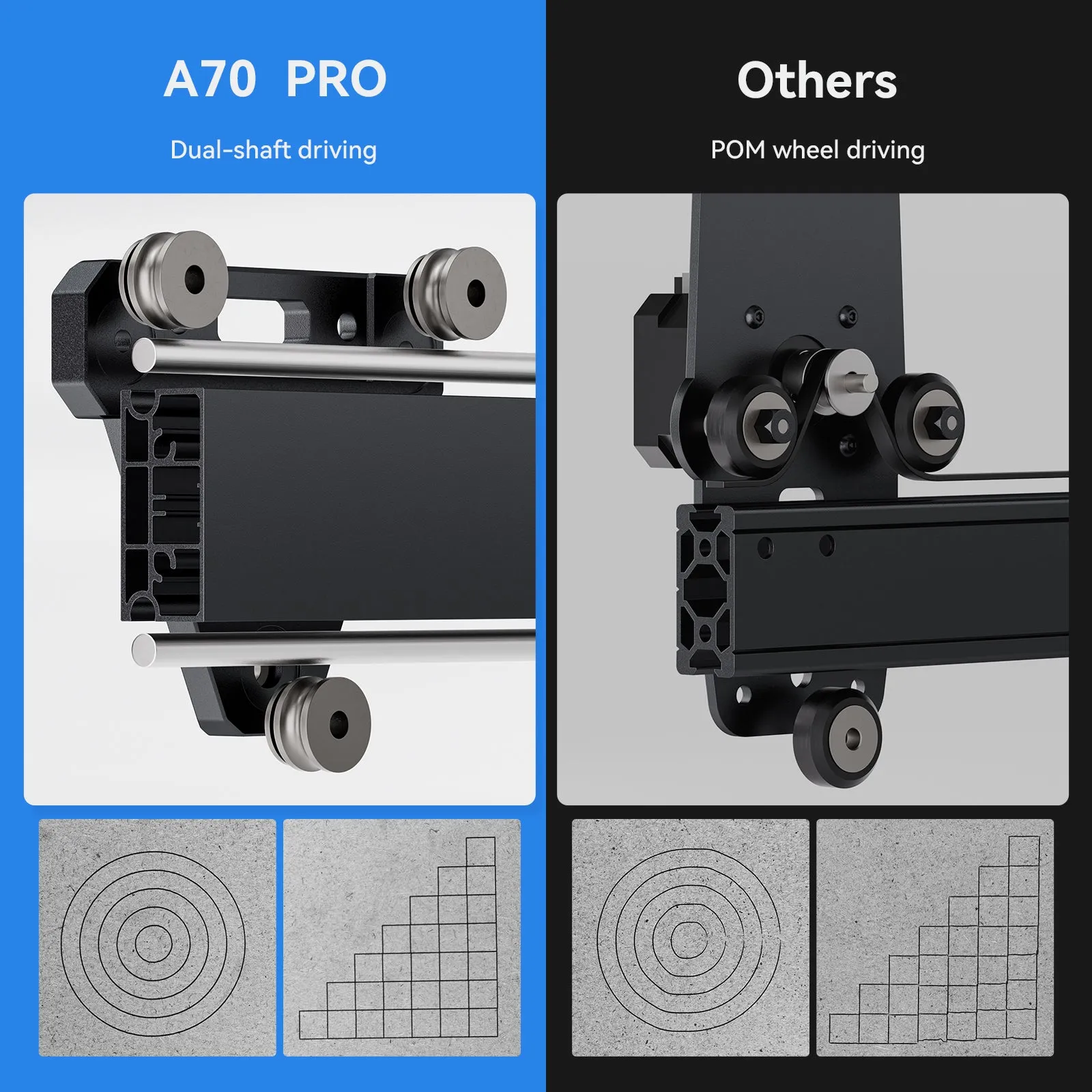

3. New motion structure: to ensure high-speed stable operation, the machine's three axes adopt a new low center of gravity dual-axis guide rail structure, stable operation at high speed, quiet, suitable for heavy-duty engraving and cutting work

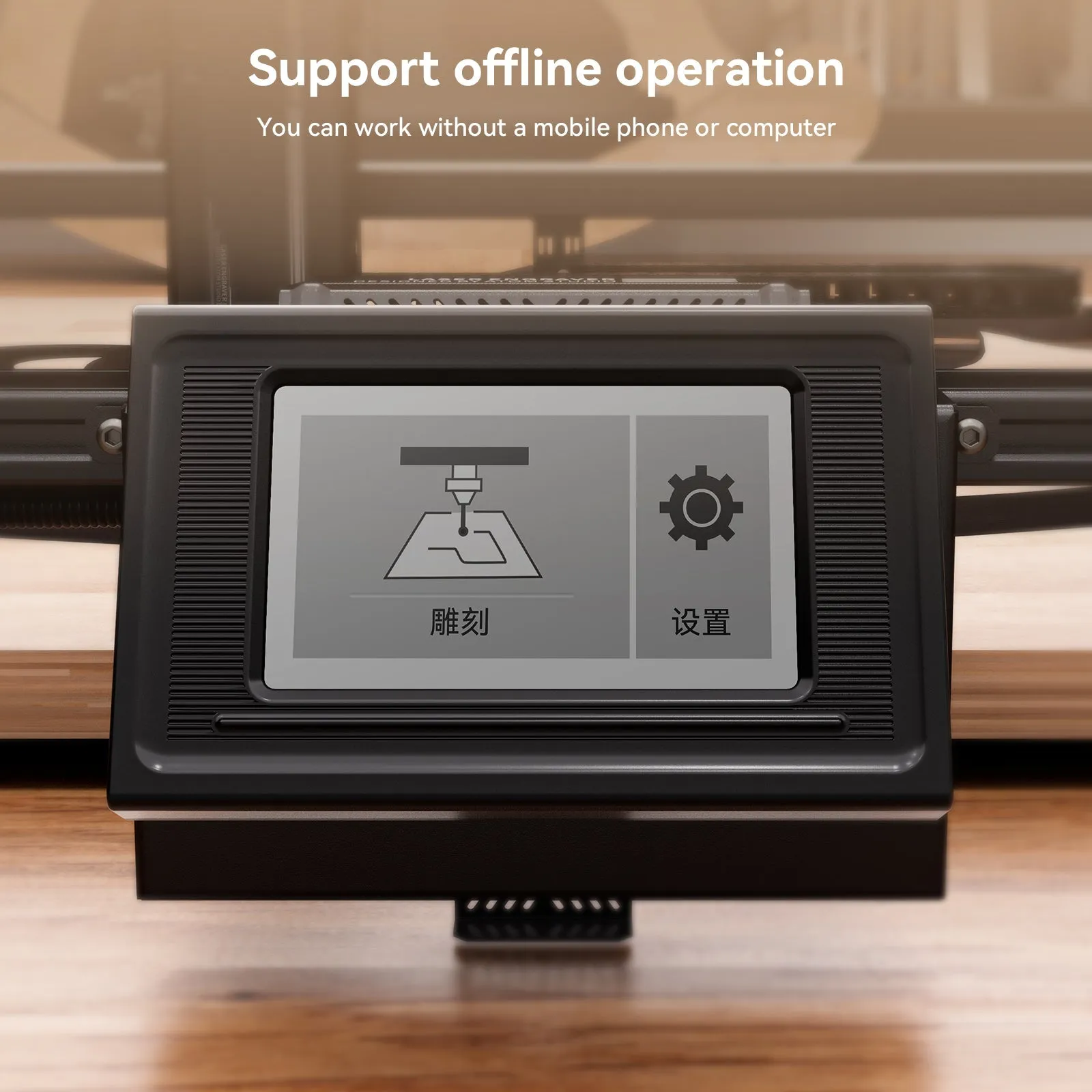

4. Offline work: product comes with a second-generation smart board and control screen, can work offline without a computer or phone

5. Standard large flow air assist: maximum 60L/min air assist ensures flawless cutting work, surface of the cut lines does not turn yellow, extends the life of the laser

6. Multiple usage scenarios: can work on reflective metals, ceramics, black acrylic, supports woodworking, painting art, DIY creation, billboards, metal marking, clothing design

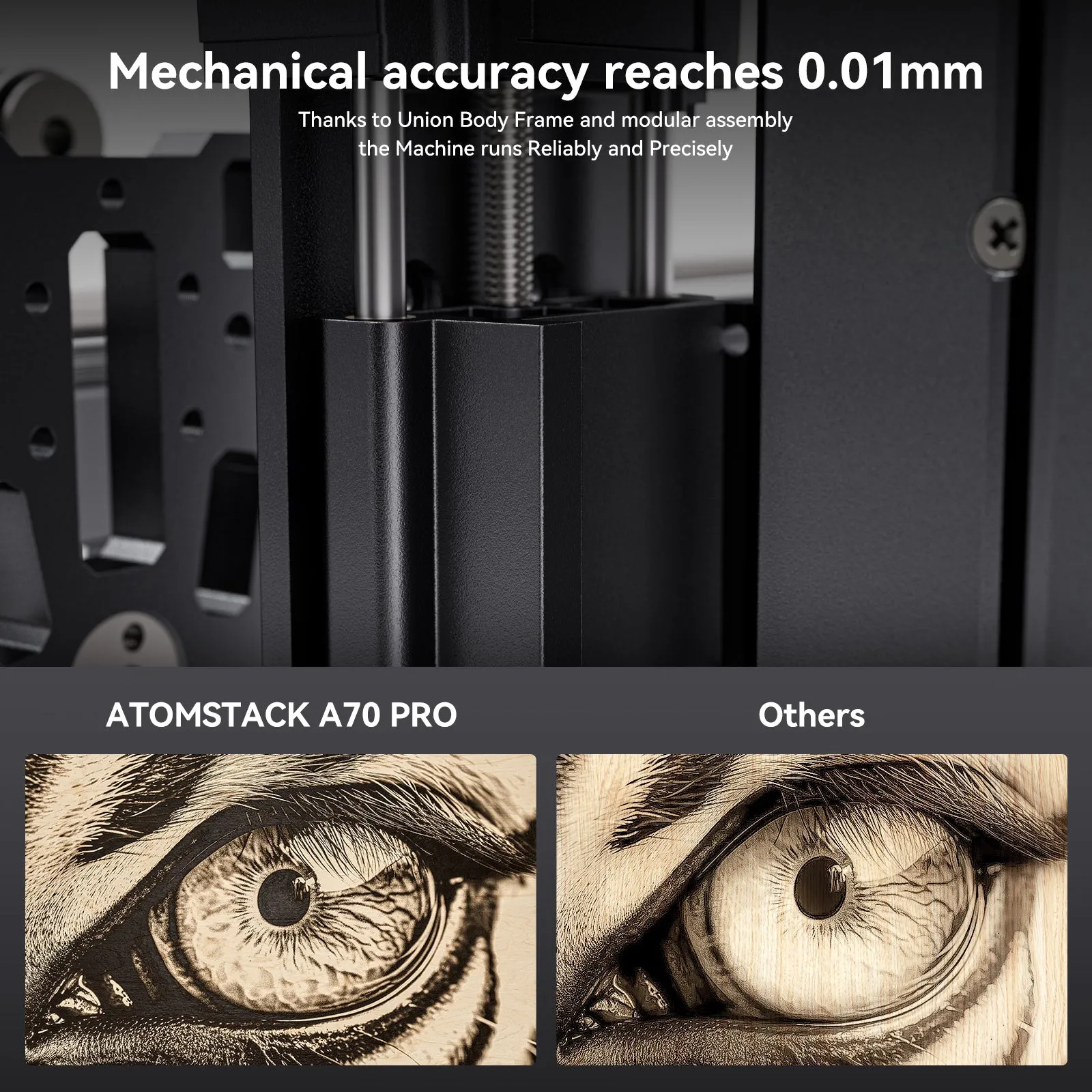

7. Quick accuracy maintenance: at a high-speed operation of 400mm/s, can maintain accuracy of 0.01mm

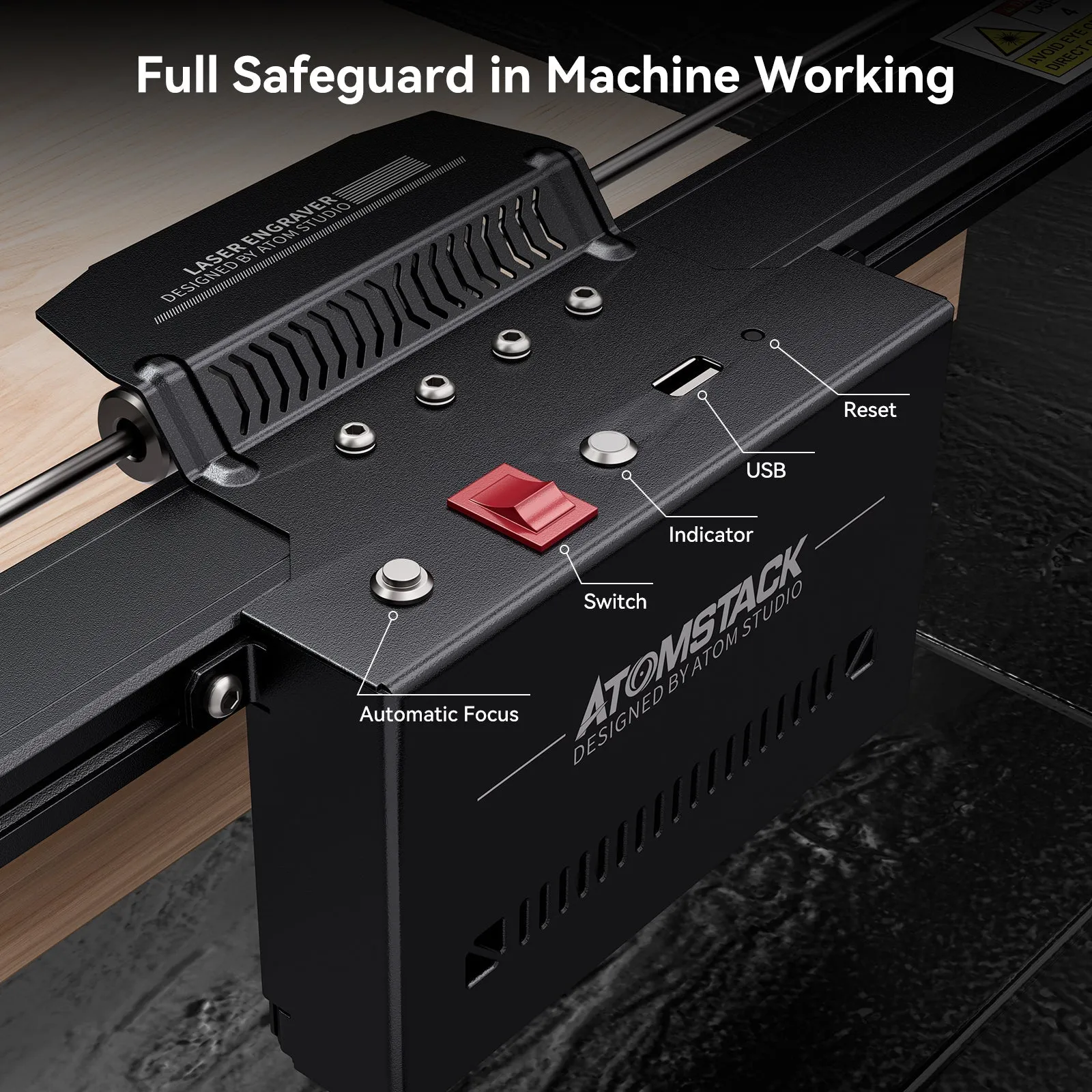

8. Dual-mode focus adjustment: supports manual and automatic focus adjustment, completes focus adjustment within 8 seconds

9. Automatic flame alarm: triggers an alarm and stops working when the wavelength points of the flame spot in the working area exceed 35%, accurate and fast

10. Intelligent cooling system: opens the double-layer air guide hood air assist, automatically turns on air assist during cutting for better heat dissipation and cutting effects

11. Power-off resume function: in case of power outage during creation, resumes unfinished creation when power is restored

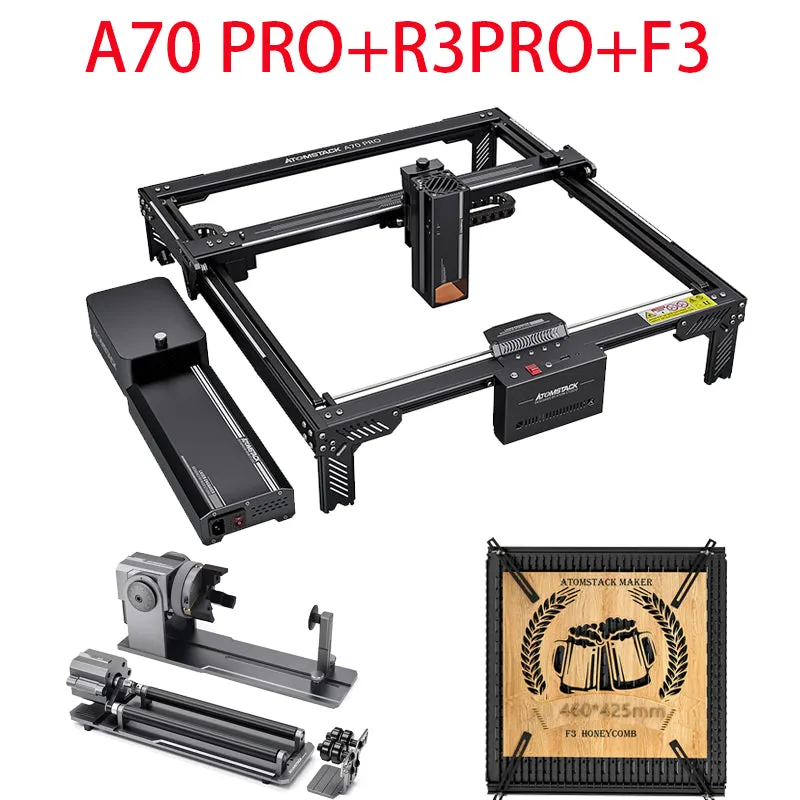

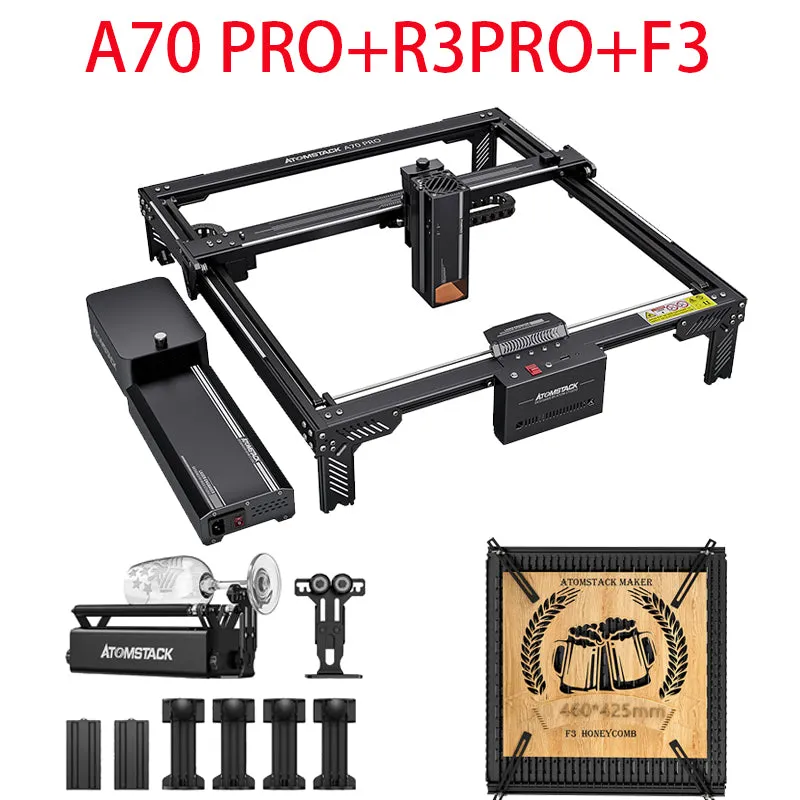

12. More accessories available: can be equipped with a cover, camera, roller, extension rod, conveyor belt
