About ATOMSTACK :
100% laser engraving machine manufacturer located in China, welcome to visit our factory whenever you like! It is important to know that our factory do not just sell "boxes", but we offer support and advice to get the best results with the laser engraver you choose. We are always available to provide the spare parts you need with your laser engraving machine .You could reply on us for the consistent quality and service!
About Tax:
we do not including any tax and duty!
About customs charging fee . nobody can control , every country customs has different Import and export tariff system.
About Maintenance:
All machines have 13 months warranty against manufacturing defects,buy it with confidence. If any breakdown, send us the working video, we shall offer solutions for you. If the item was damaged during transportation or cannot be used normally, pls do not hesitate to contact us and provide us the photos and working video, we will give a partial refund or send the spare parts for free.

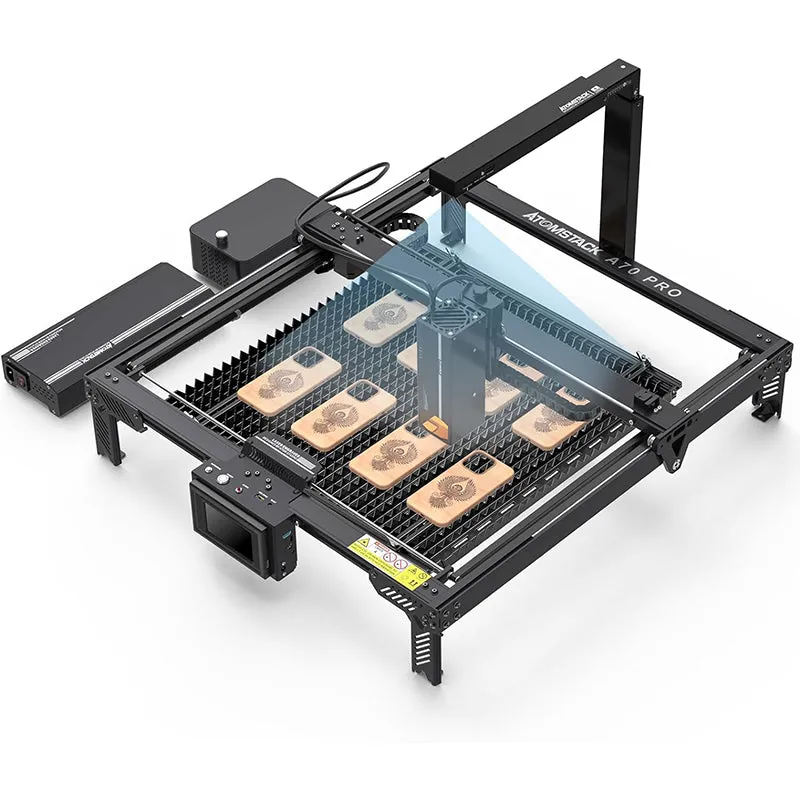

ATOMSTACK A70 PRO Laser Engraving Cutting Machine

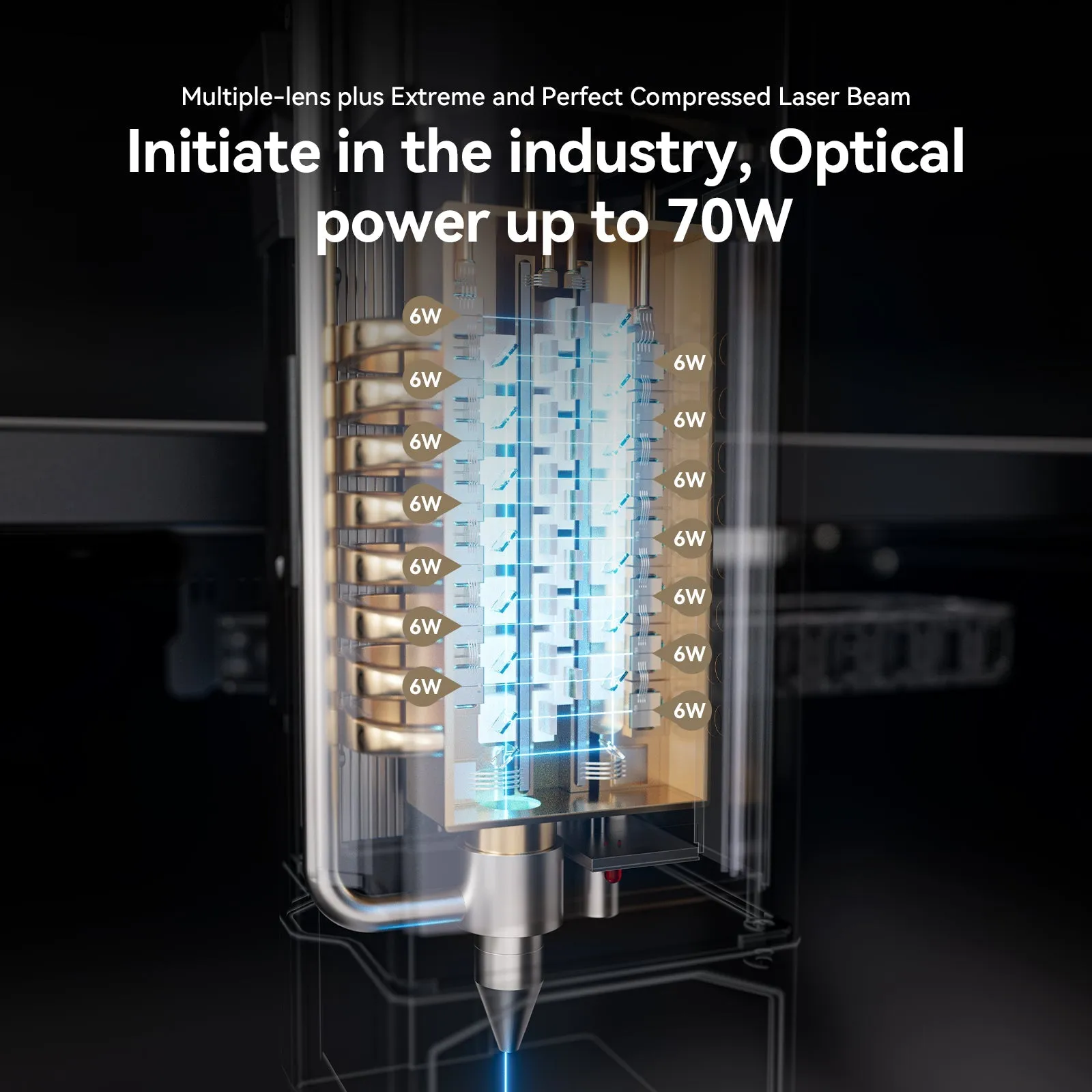

By far the highest on the market: 70W optical power
The world's first 70W diode laser cutter
➤ Engraving accuracy: 0.01 mm precision with 400 mm/s.
➤ Engraving size: 500 x 400 mm.
Cross positioning system.

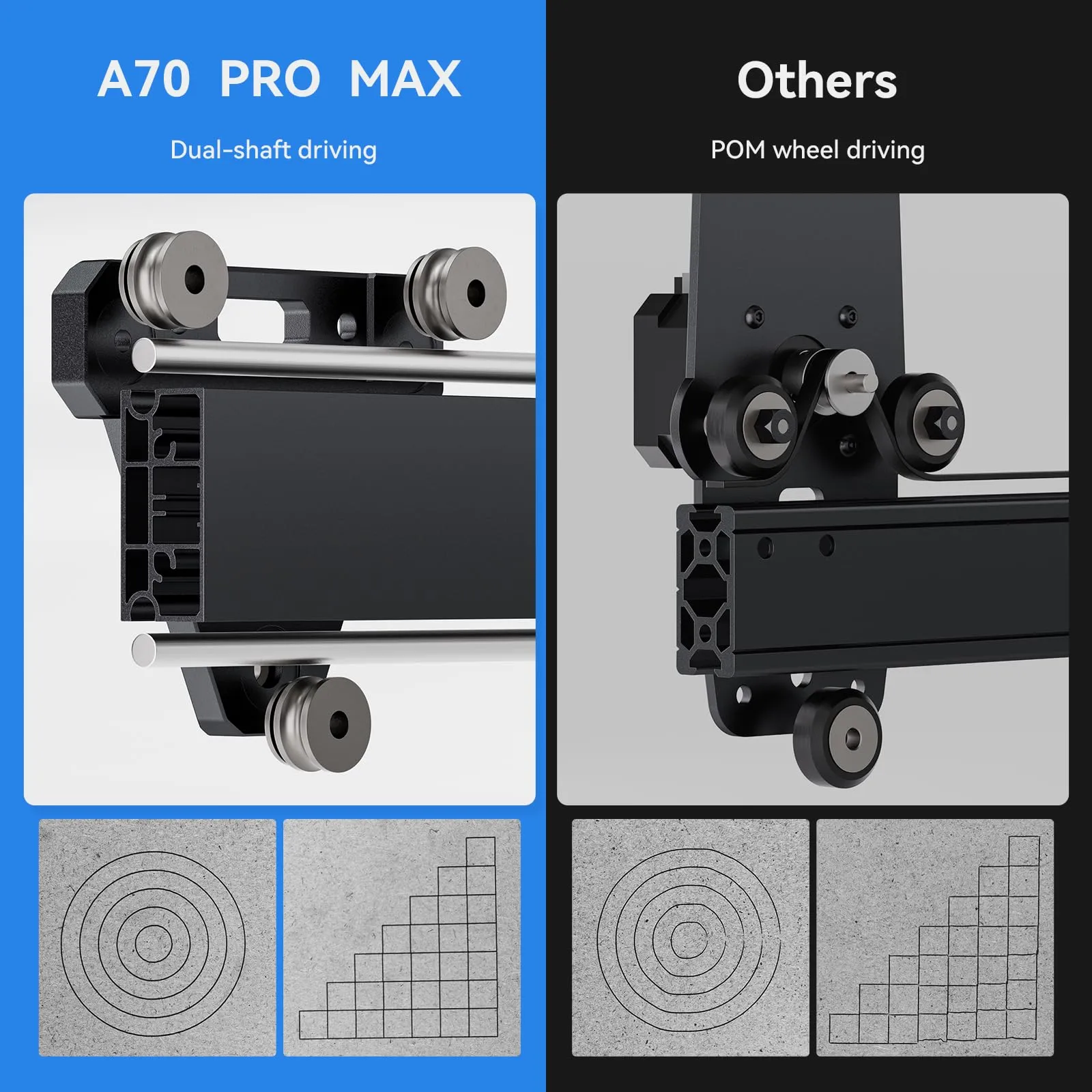

Double shaft drive.
Built-in screen controller.
Technical data:
Product model: Atomstack A70 Pro.
Device size: 706 x 767 x 230 mm.
Engraving size: 500 x 400 mm.
Working principle: engraving/cutting.
Engraving materials: wood, bamboo, cardboard, plastic, leather, circuit board, aluminium oxide, non-reflective electroplated and painted metal, mirrored 304 stainless steel, glass, ceramic, cotton, slate;
Cutting materials: thin steel plates, cardboard, non-woven fabric, wood, acrylic, thinner plastic sheets, sponge;
Input power: 360 W
Output power: 70-77W, 35-39W
Maximum speed: 400 mm/s (24000 mm/min)
Laser wavelength: 455±5nm

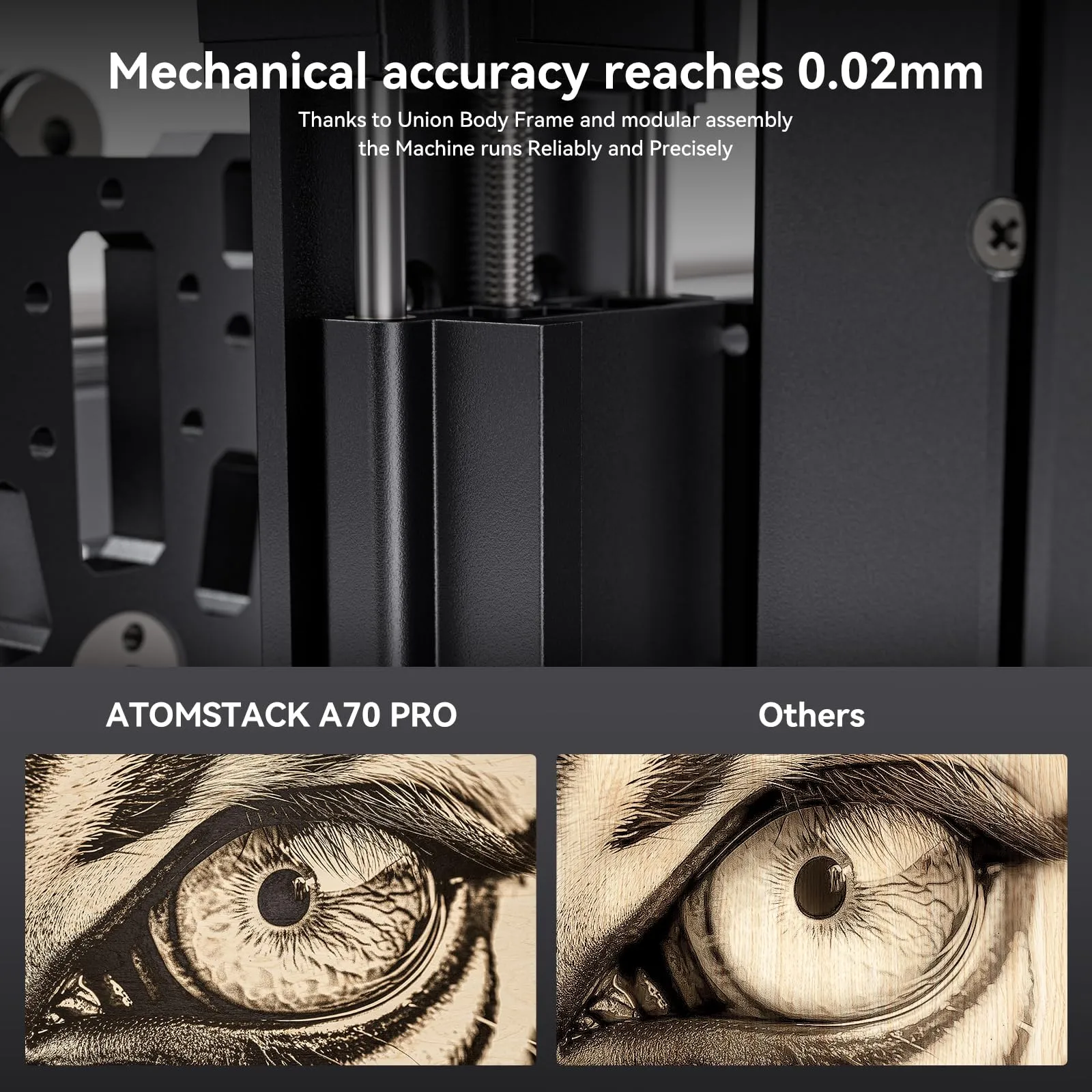

Engraving accuracy: 0.01 mm.
Repeat accuracy: 0.1 mm.
Spot size: 0.12 x 0.18 mm (70 W) / 0.08 mm x 0.12 mm (35 W).
Transmission method: USB transmission

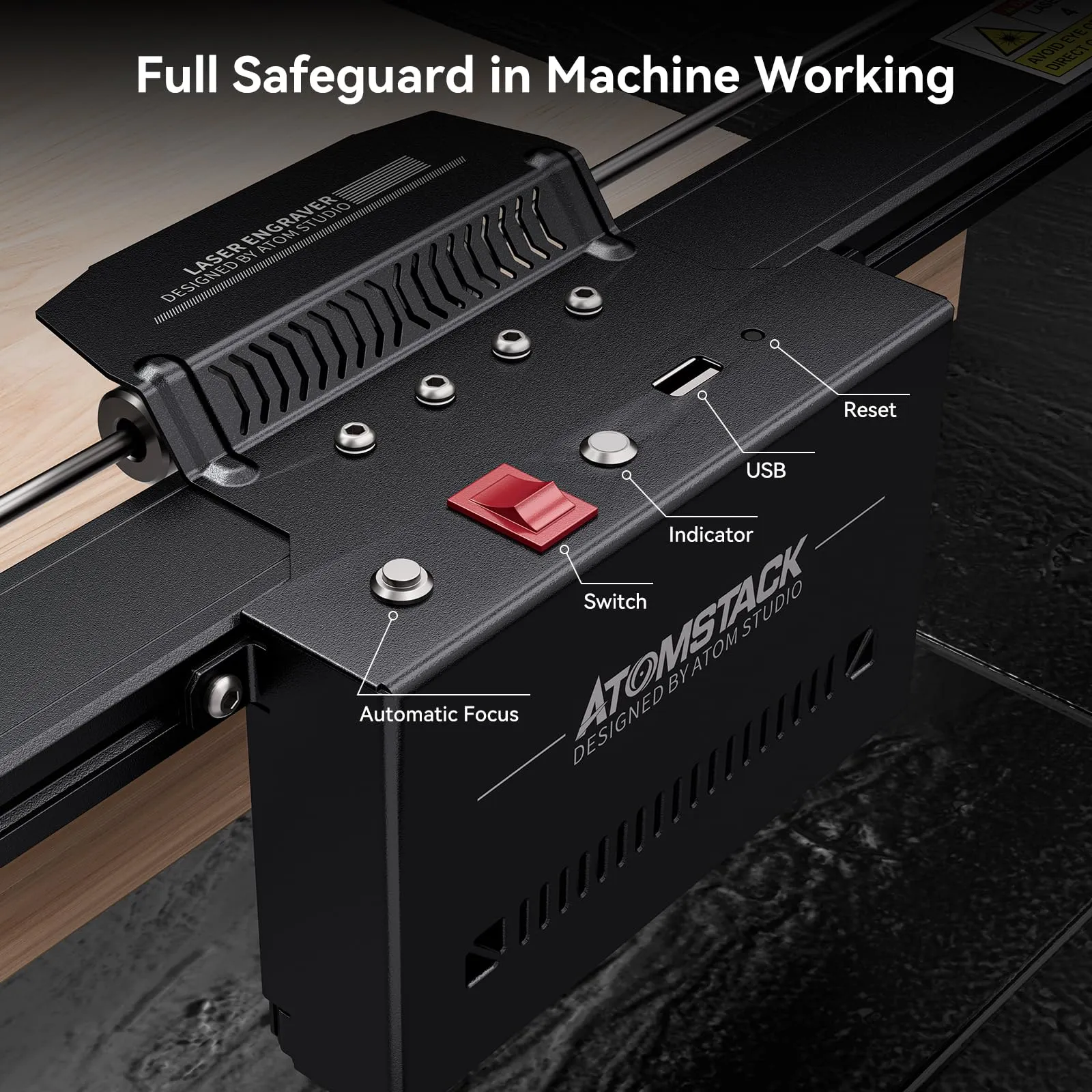

Focus adjustment method: automatic focus manual focus
Screen control: 4.3 inches.
Connection Support: Type-C, Mobile WiFi, Touch Screen
Supported systems: iOS, Android, Windows, Mac
Operating software: LaserGRBL, LightBurn, AtomStack Studio
Air flow: 0-60 L/min infinitely adjustable.
Power Supply: Input 100-240V AC 50/60Hz Output 12V 5A
Quality certification: CE, FCC, RoHS, FDA, PSE
Product Description :

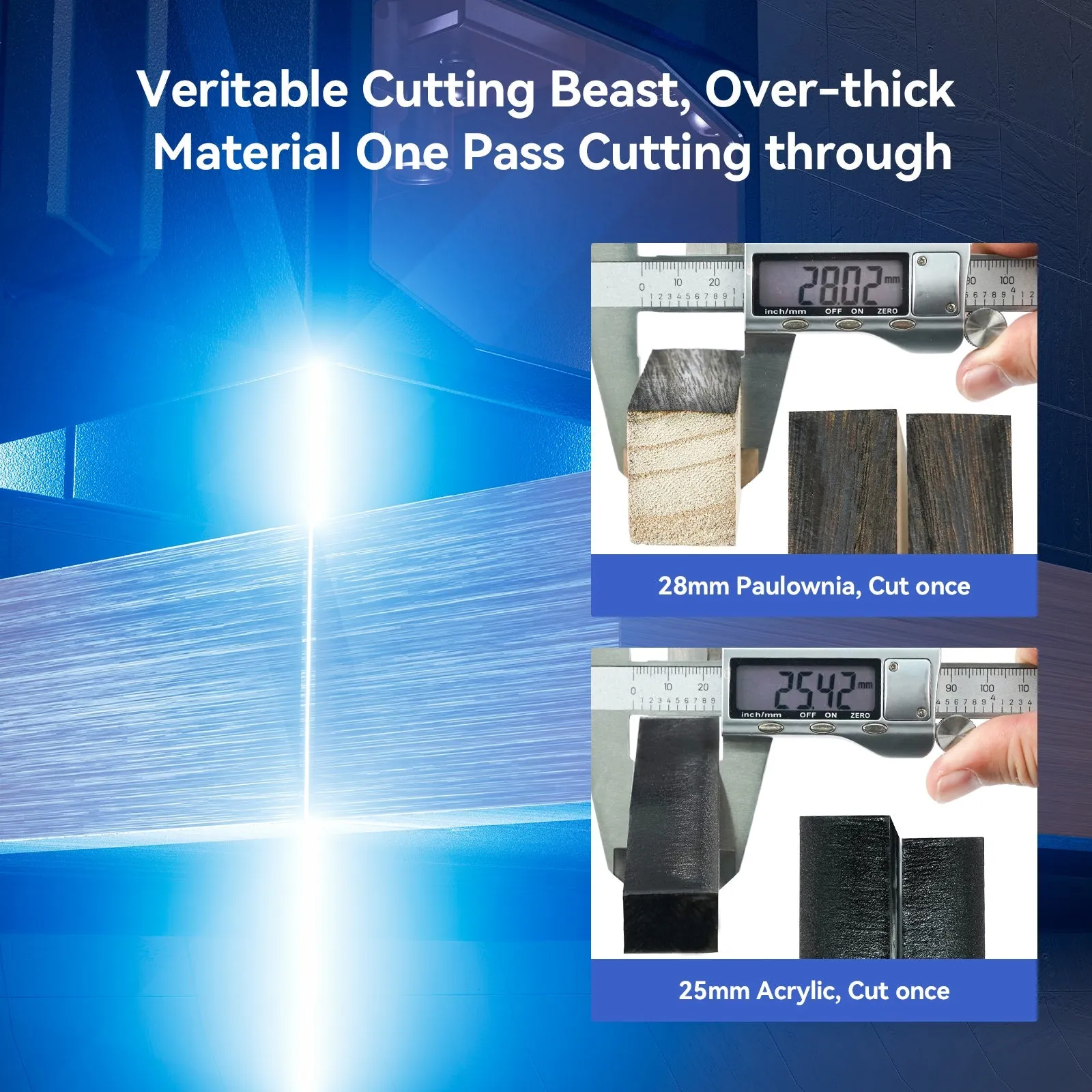

Strong cutting force: can cut 25mm black acrylic, 12mm MDF board, 30mm pine board and 0.3mm stainless steel sheet
