Product Details
＋

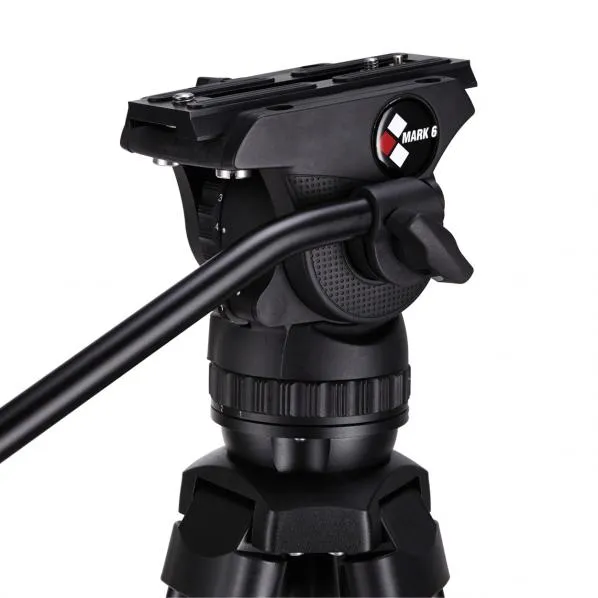

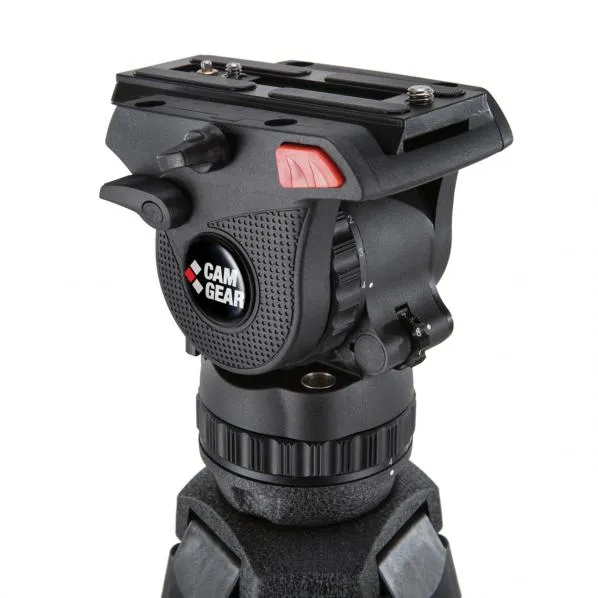

Mark 6 Moulded Composite Fluid Head, designed for DSLR/HDV/Camcorders, Manfrotto extended camera sliding plate, payload capacity 0-22 lbs. at 50mm COG, Counterbalance: 8 steps, 4 steps of Fluid Pan and Tilt drag, Levelling bubble, 75mm bowl and 3/8"-16 thread for photography mounts, single pan bar, bowl clamp
Specifications
| Bowl Diameter | 75 mm |
| Camera Platform Type | Sliding camera plate |
| Camera Plate | Camgear SP-MARK 1/4" screw, 3/8" screw |
| Counterbalance System | 8 steps (1-8) |
| Pan & Tilt Drag | 4 steps (1-4) |
| Pan & Tilt Range | Pan: 360° / Tilt: 90/-75° |
| Temperature Range | -40°C to 60°C / -40°F to 140°F |
| Levelling Bubble | Yes, not illuminated |
| Pan Bar | Camgear PB-MARK |
| Maximum Payload | 10 kg / 22.05 lbs |
| Weight | 1.42 kg / 4.14 lbs |
| Sliding Range | 104 mm / 4.1 inch |
