Product Details
＋

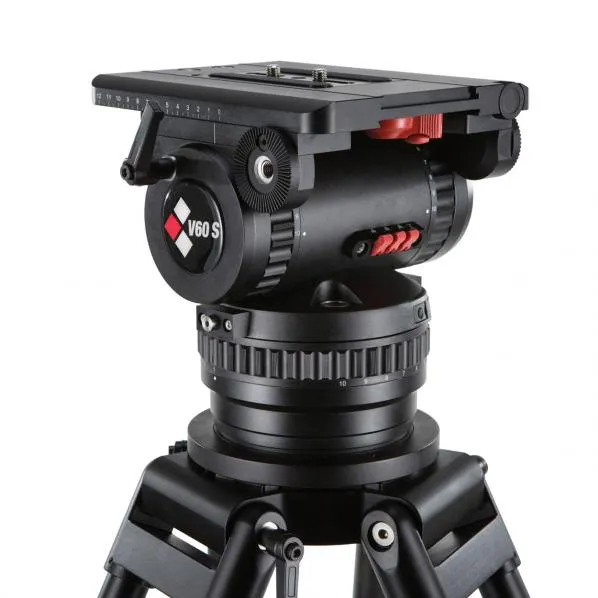

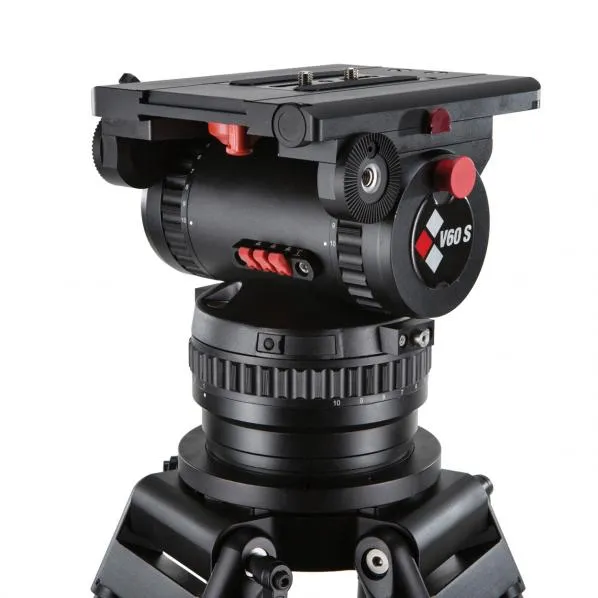

V60 Cast and Machined Aluminum Fluid Head, Capacity 0-155 lbs. at 150 COG For EFP/Studio camera’s, Studio Type Rotary fine adjustment sliding plate mechanism, Euro style camera plate, 40 position stepped counterbalance, illuminated levelling ball, 10 steps of Fluid Pan and Tilt Drag, Camera Build Lock for secure camera package assembly, 2-PB-3 studio type Telescoping Pan Bars, Head mounts to Pedestals or Legs via 4 bolt flat base or via Mitchell adapter (see accessories). Hard travel case with casters and integrated extended transport handle included.
Specifications
| Bowl Diameter | 4-bolt Flat Base |
| Camera Platform Type | Euro plate |
| Camera Plate | Camgear WP-6 , Double 3/8" screw |
| Counterbalance System | 10 3 steps (10-1 & 3 adjustable levers) |
| Pan & Tilt Drag | 10 steps (1-10) |
| Pan & Tilt Range | Pan: 360° / Tilt: 90/-75° |
| Temperature Range | -40°C to 60°C / -40°F to 140°F |
| Levelling Bubble | Illuminated |
| Pan Bar | Camgear Telescopic PB-3 (set of 2, left & right) |
| Maximum Payload | 70 kg / 154.32 lbs |
| Weight | 12.66 kg / 27.91 lbs |
| Sliding Range | 120 mm / 4.7 inch |
