Description

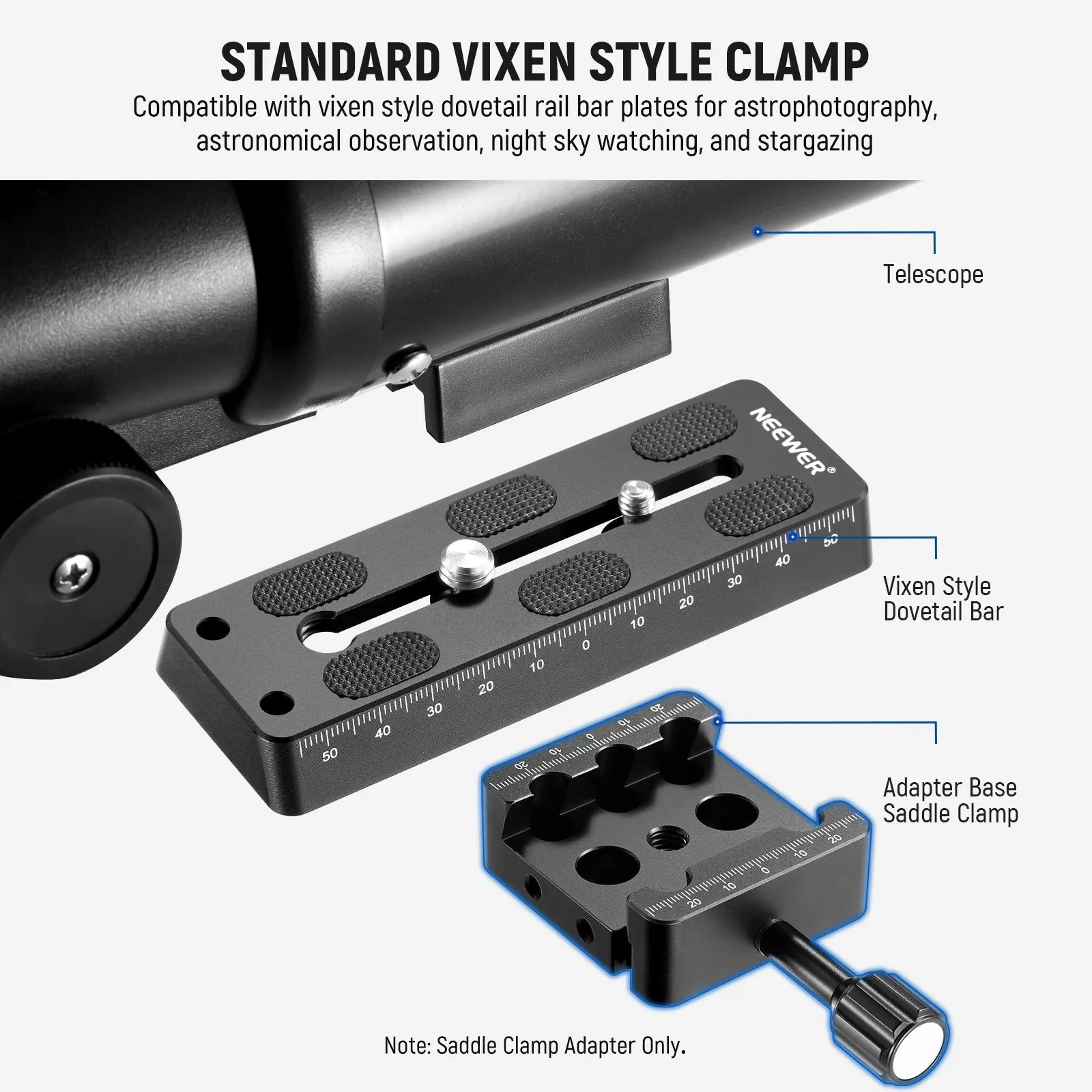

Standard Vixen Style Dovetail Bars Clamp- Compatible with vixen style dovetail rail bar plates for astrophotography, astronomical observation, night sky watching, and stargazing
Drop In Mounting Supported- Tilt the rail bar plate and insert the lower end into the saddle clamp, then slide it in until the rail bar plate sits flush inside the clamp. Note: the rail bar plate is not included

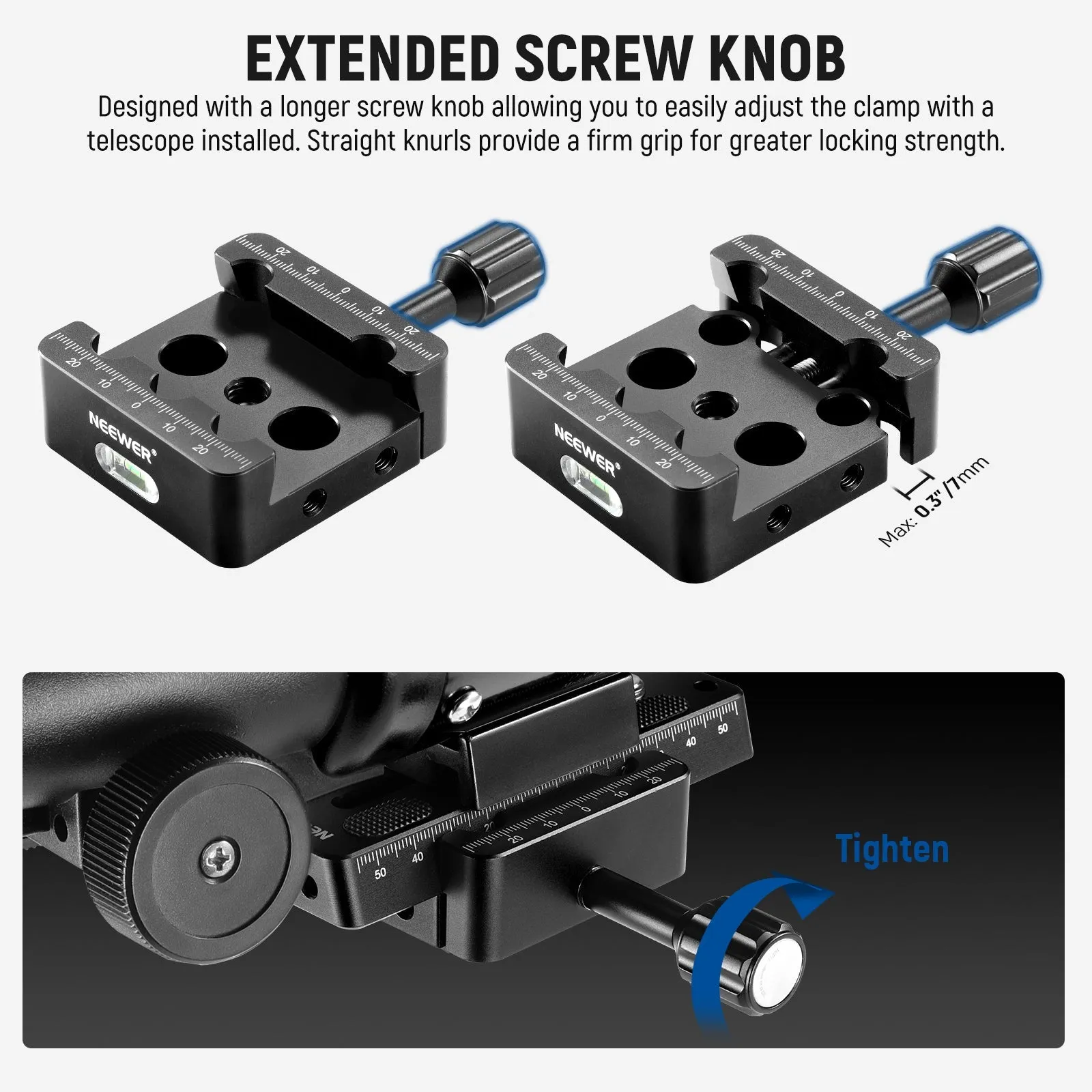

Long Adjustment Screw Knob- The prolonged screw knob lets you unimpededly adjust the clamp with a telescope installed. Straight knurls provide a firm grip for greater locking strength

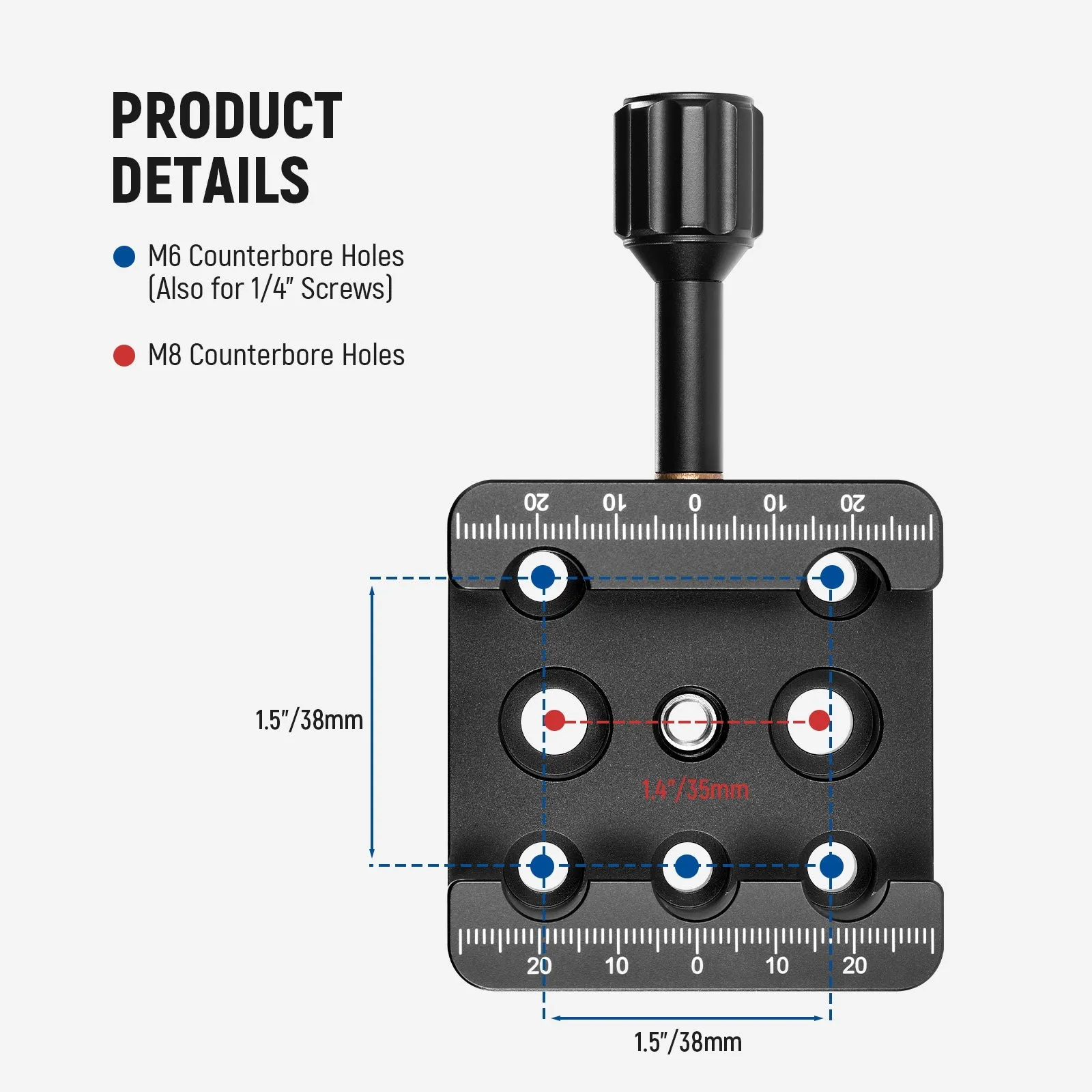

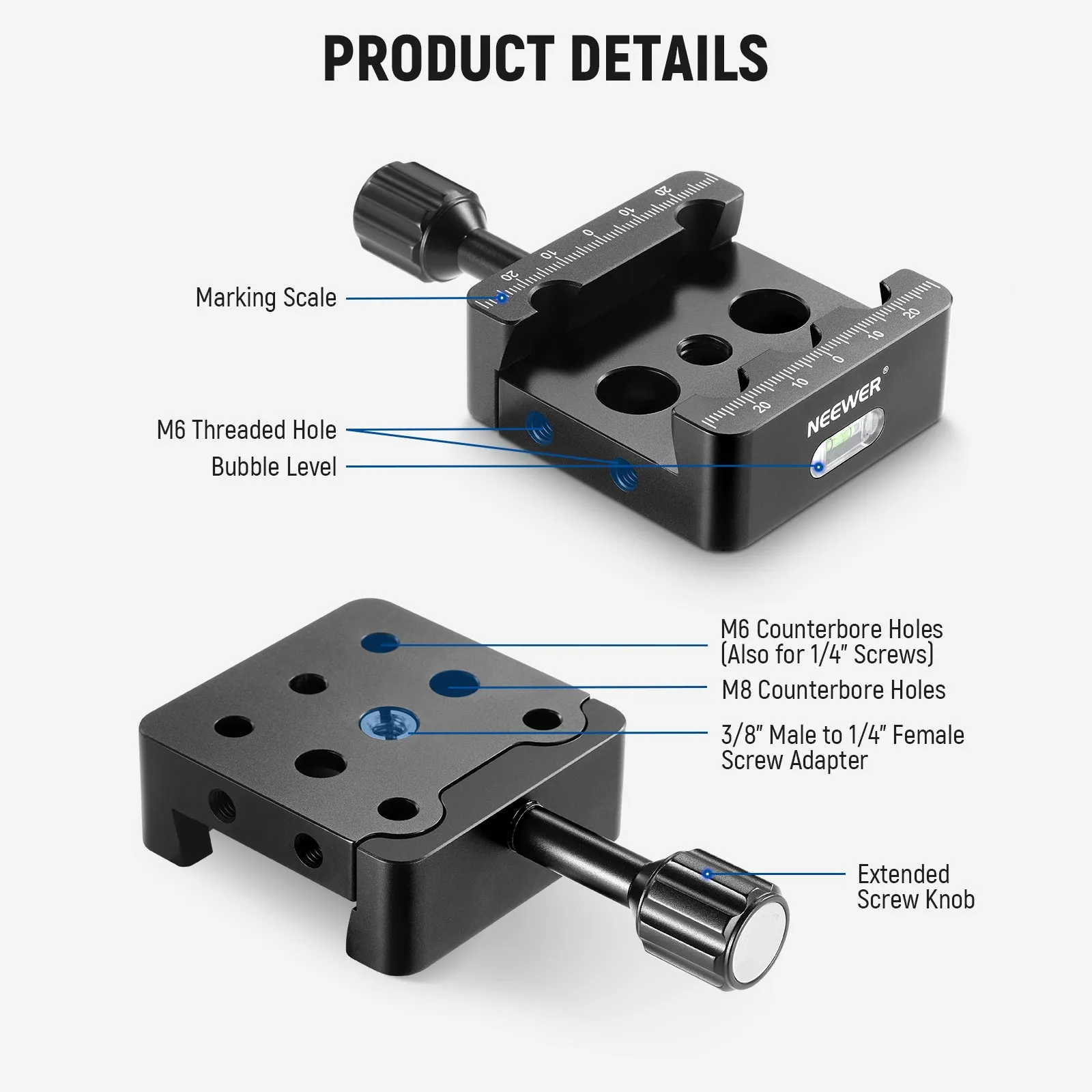

Sufficient Mounting Threads- 2 x M8 countersink bores with 35mm spacing. 5 x M6 countersink bores (also for 1/4" screws) in total: four M6 countersink bores with 38mm spacing and a M6 countersink bore 19mm from the center. 4 x M6 threaded holes on both sides. Achieve attachment for the saddle to the equatorial mount head and optical tube assembly

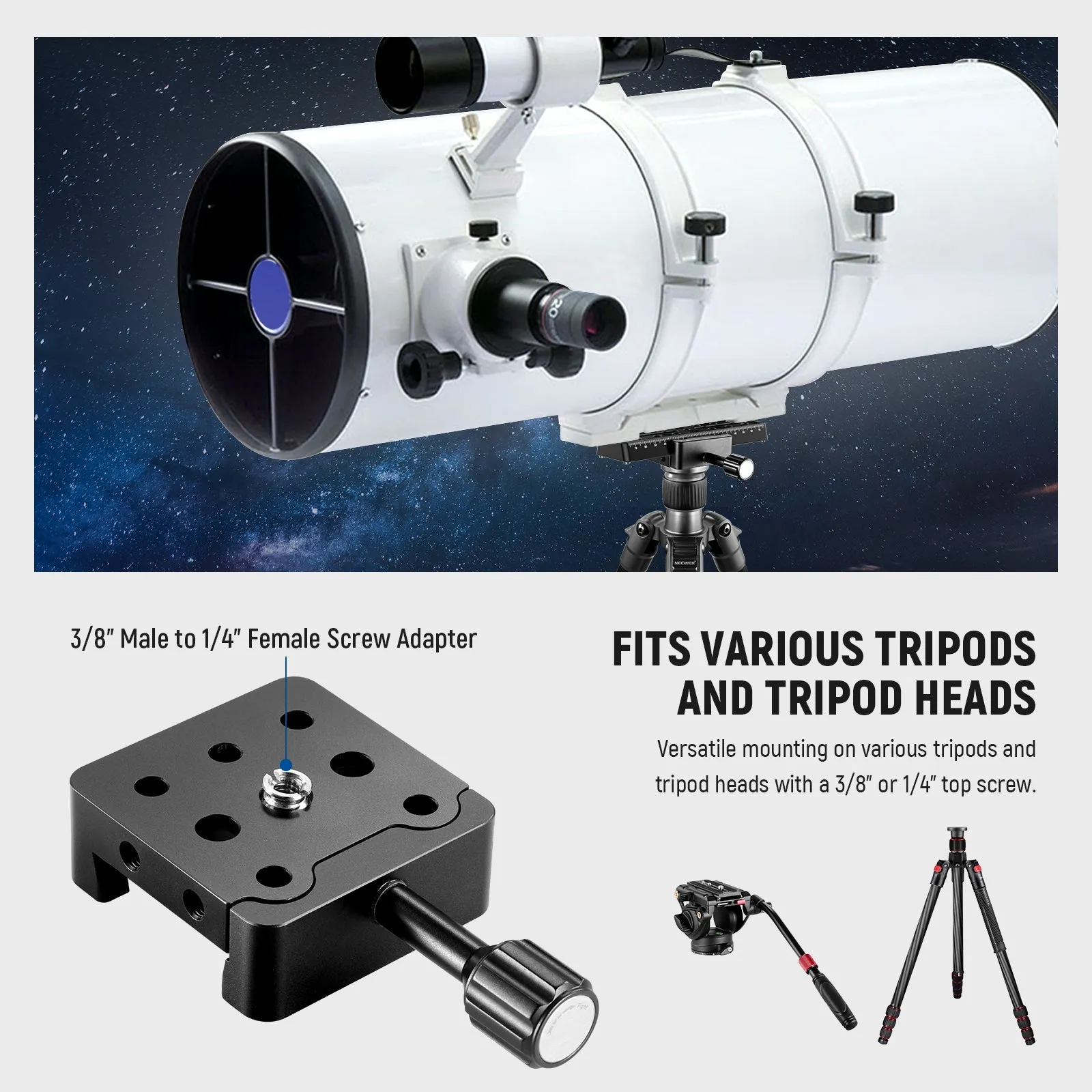

For Various Tripods or Tripod Heads- There is a 3/8" threaded hole on the bottom center as well as a 3/8" to 1/4" screw thread adapter included for easier mounting on various tripods and tripod heads with a 3/8" or 1/4" top screw. Also designed with a bubble level, the clamp helps you easily keep the telescope parallel to the ground
